Compact high efficiency biogas extraction and combustion plant – HE type

Compact high efficiency biogas extraction and combustion plant – HE type

- Open/partially visible flame flare
- High combustion efficiency
- Operating logic managed by PLC

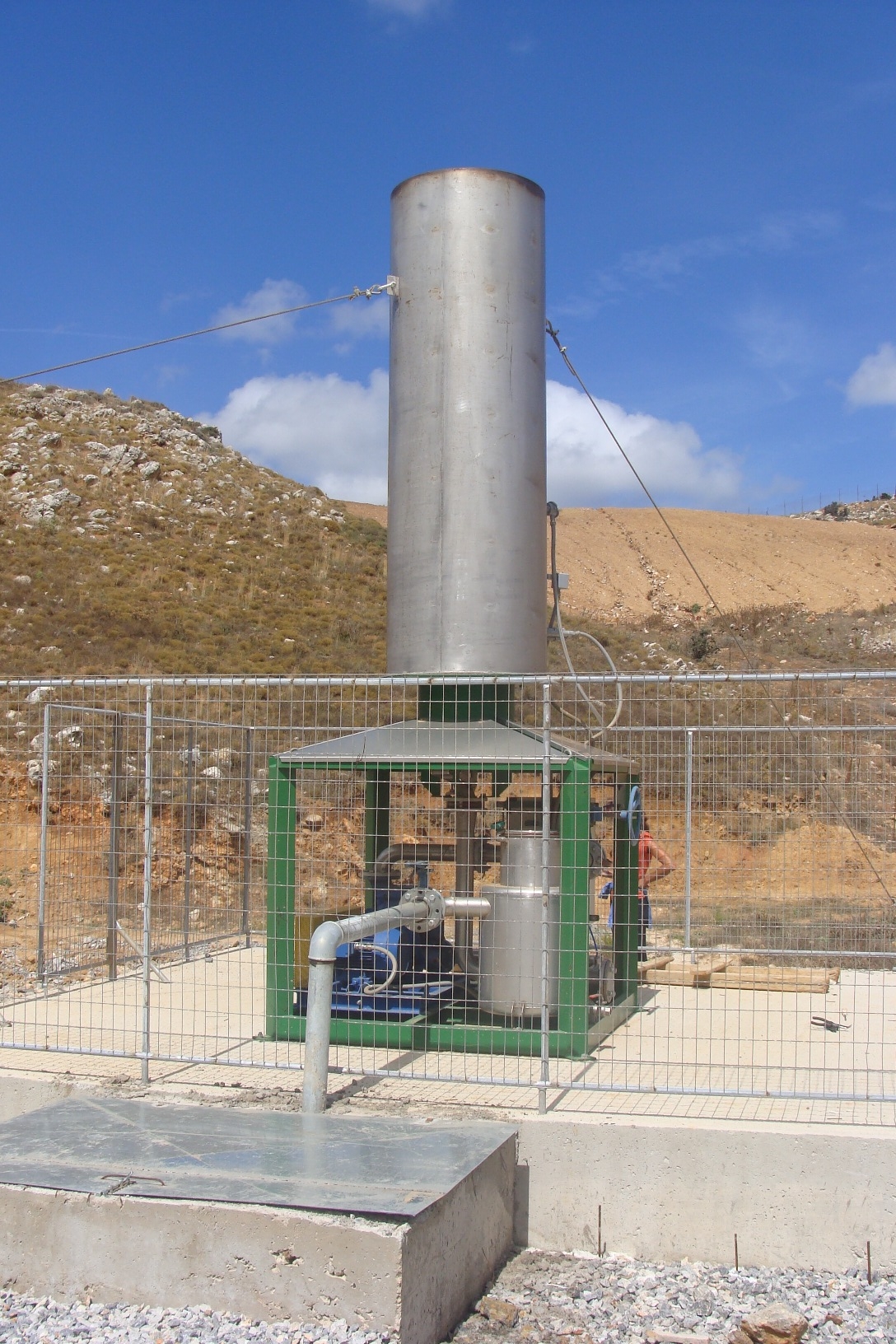

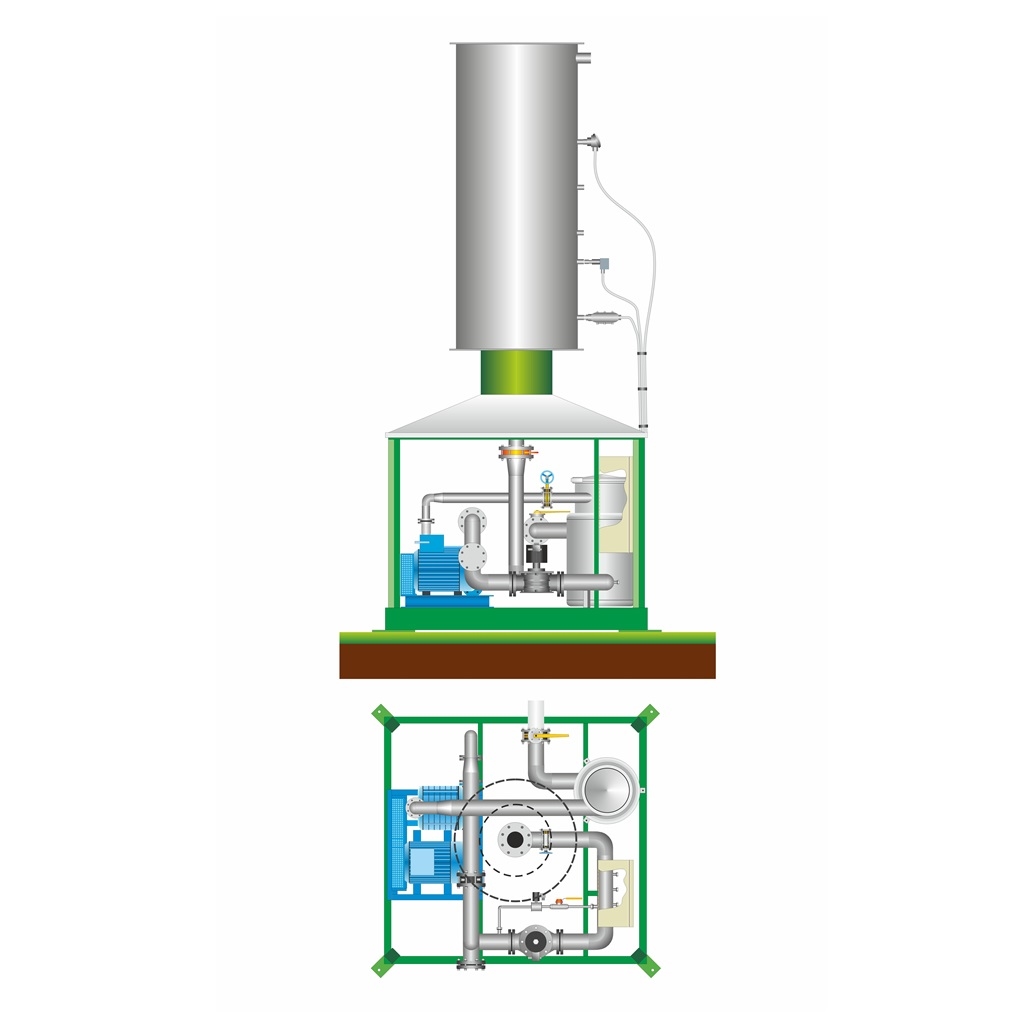

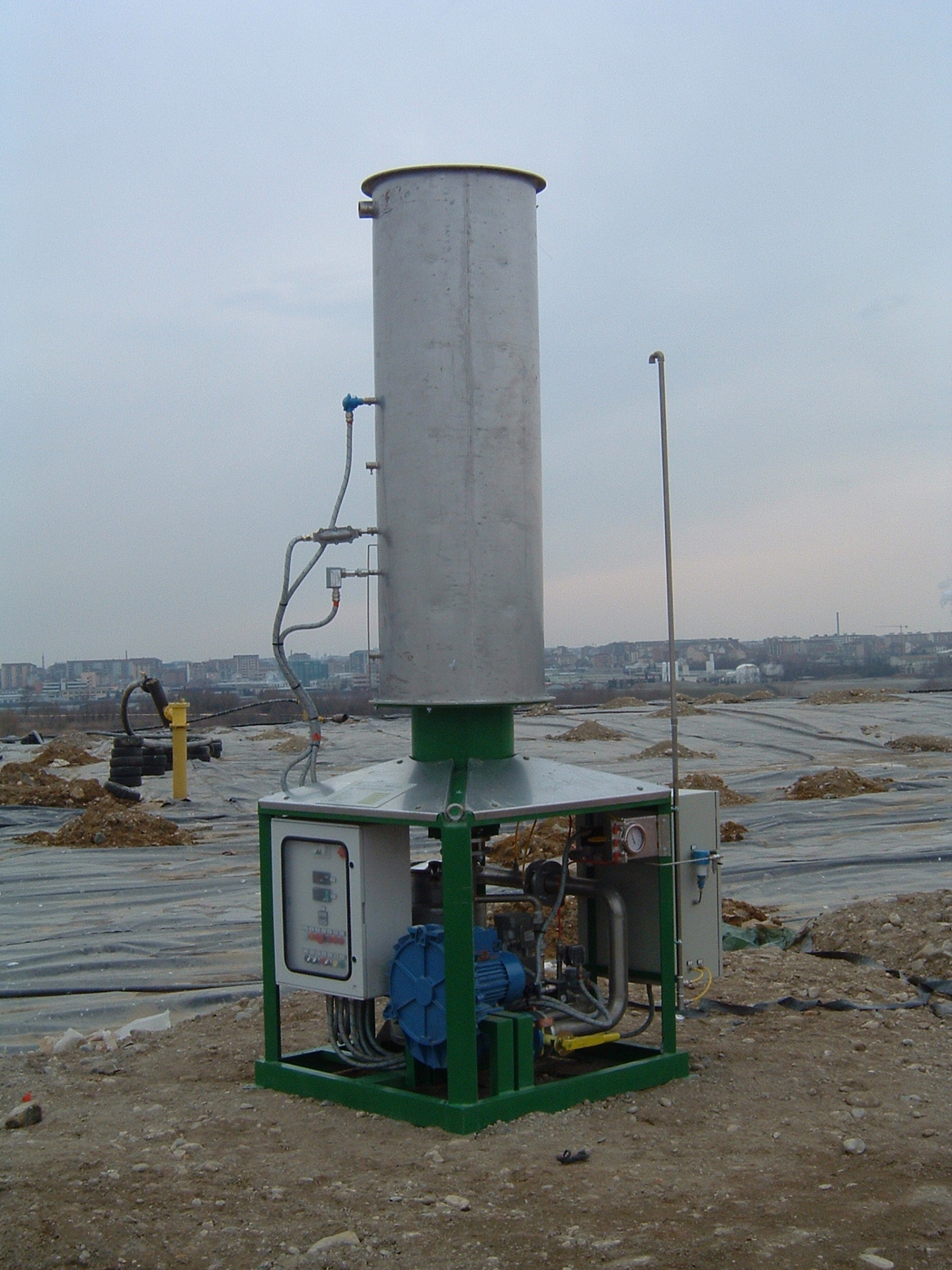

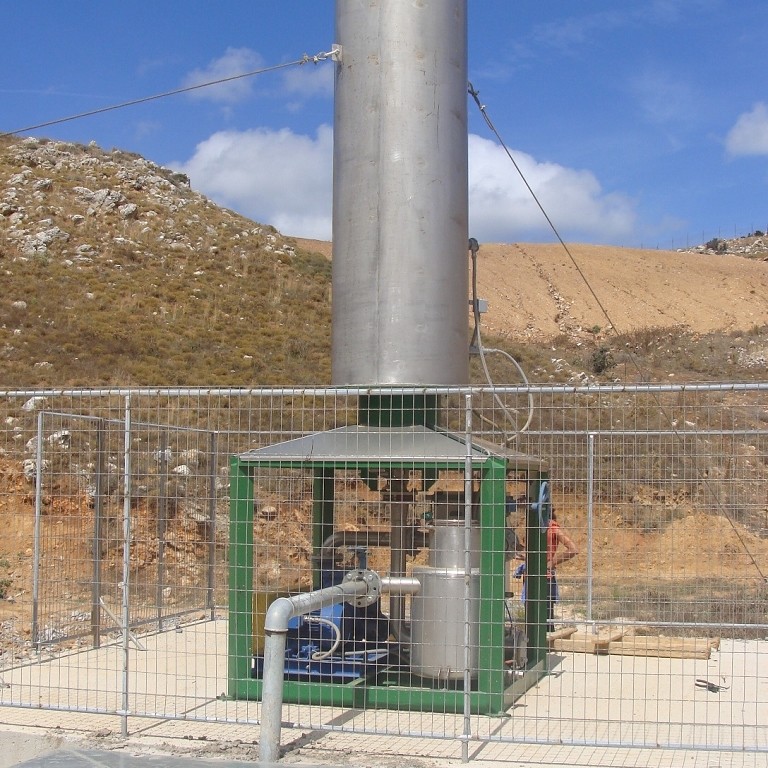

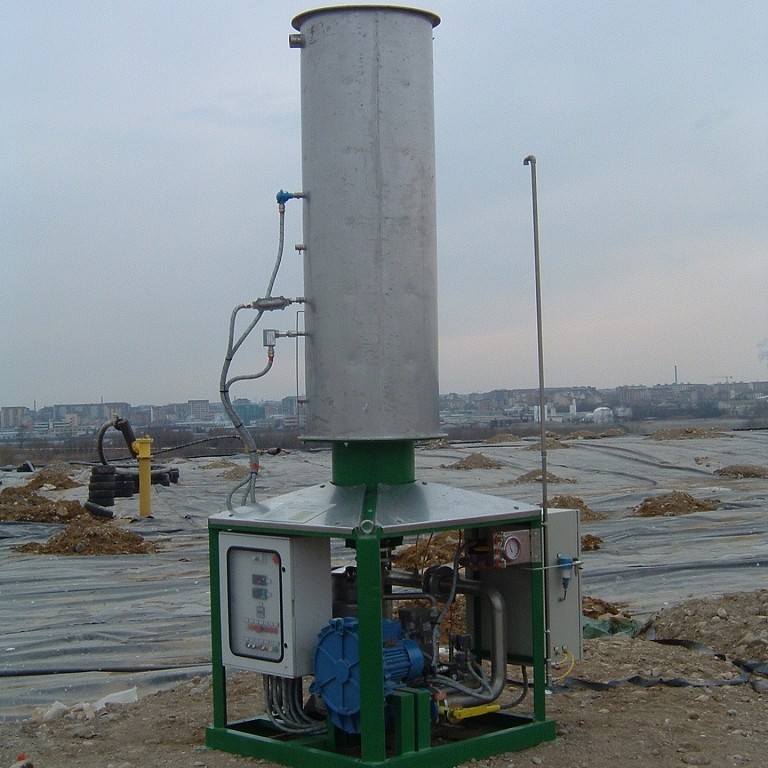

High efficiency, compact biogas suction and combustion unit mounted on a frame. Compact design and easy installation allow use in emergency situations, for temporary installations or to check the production capacity of the landfill.

Features:
•  Filter and pipes in AISI 304 stainless steel
•  Galvanized/painted steel frame
•  Open flame flare
•  AISI  304 stainless steel combustion chamber with ceramic fibre coating
•  Stainless steel burner with multiple nozzle
•  Combustion range: 20-50% methane
•  Max. combustion temperature 900 °C
•  Flame retention < 0.3 sec
•  Manual comburent air adjustment
•  Capacity range 50 - 800 m3/h
•  Minimum operating range: 1/5 of rated capacity
•  PLC operation
•  Compliant with ATEX standards and main sector directives
